Stairmaster Cardio, New Alternator 260-0952, Backwards Compatible to Replace SM22900

The alternator on Stairmaster cardio machines has been replaced at the OEM by a new alternator. Stairmaster was previously using their part number SM22900 as the alternator for cardio machines. This part has been replaced by the new alternator part number 260-0952. This new part number will fit older machines; however, the wiring has changed. The new alternator will need to be wired to the machine differently when replacing an alternator on older machines.

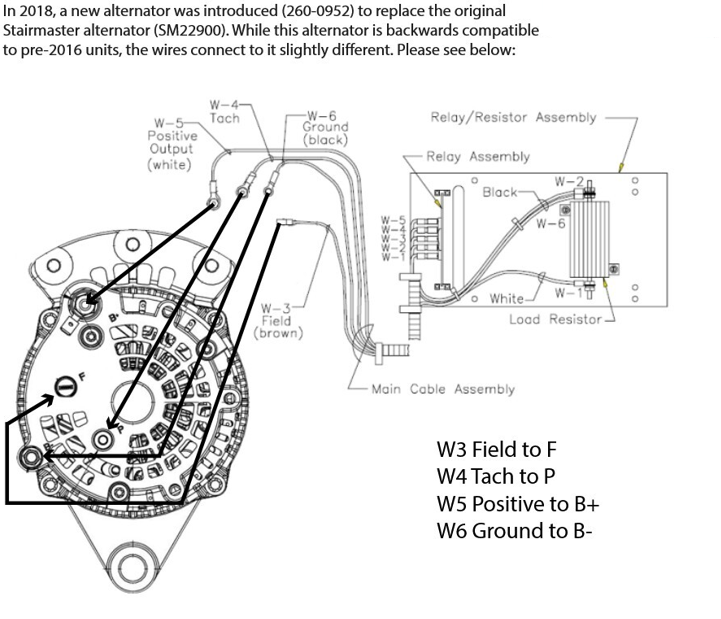

Below are the details of when the change occurred and how to wire the new alternator for the older machines.
