How to Find Serial Number on Fitness Equipment

Ascent Trainers

Bikes

(Stationary - Recumbent)

Bikes

(Hybrid)

Ellipticals

Treadmills

Folding


• Located on the front of the machine, near the power cord and/or power switch.
• Located on the base frame.

Non-Folding


• Located on the front of the machine, near the power cord and/or power switch.

Bikes

A serial number may be found in one of these locations

1.
   1. Located mid-frame, between the front and rear stabilizers.
   2. Located on the rear upright frame on the user's left side.
   3. VeloCore Model: Located on the front of the bike.

Dumbbells & Stands

A serial number may be found in one of these locations

1.
   1. Located on the cradle (underneath, side, or in the dumbbell space).
   2. Located on the bottom frame of the stand.
   3. Located on cross plate between the left and right legs of the stand.

Ellipticals

1. Located mid-frame on the middle stabilizer.

Home Gyms (Power Rods)

A serial number may be found in one of these locations

1. Located on the back of lower lat tower.
2. Located on the squat frame near ground level.
3. Located underneath the frame of the rod box.

Home Gyms (SpiraFlex)

A serial number may be found in one of these locations

1. Located on the frame at ground level, below the SpiraFlex packs
2. Located at the rear.

Max Trainers

1. Located on the front stabilizer on the user's right side.

Treadclimbers

A serial number may be found in one of these locations

1. Located on the bottom frame, user's left side.
2. Located on the inside of the bottom frame, user's right side.
3. Older Units: Located on the front of the unit, near the locking lever.
4. Older Units: Located on the rear of the unit.

Treadmills

Model A

Model B

Model C

Serial# begins with 6 digits that represent the date the unit was boxed.
A serial number may be found in one of these locations

1.

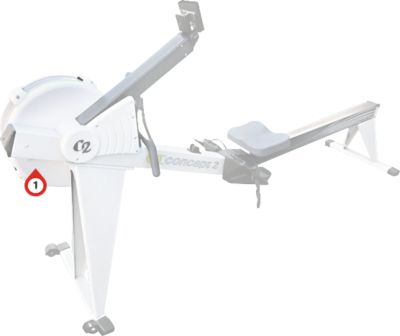

   1. Located between the "V" of the flywheel support legs.
   2. Located on the bottom side of the rower.

Model D

Model E

Dynamic Indoor Rower

BikeErg

SkiErg

Arc Trainers

Bikes

(Upright and Recumbent)

Steppers

Strength

Treadmills

1. Located on the bottom front of the machine near the power cord or on/off switch.
2. Located on the rear crossbar under the treadmill deck.

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

Ellipticals

A serial number may be found in one of these locations

1. Located on the bottom of the base frame (front or middle; must tip unit on its side to access.)
2. Located on the rear stabilizer.
3. Located on the bottom of the ramp.

Strength

Benches


• Located on the bottom of the seat pad.

CTS


• Located on the rear frame, below the weight stack.

Single Stations with Weight Tower


• Located on the inside of the tower.

Dip Chin and Leg Press


• Located on the bottom of the frame.

Treadmills

A serial number may be found in one of these locations


1. Located on the front of the machine
2. Located on the crossbar (machine must be in the folded position).
3. Located on the rear inside deck frame, the user's right side.

Ellipticals

Treadmills

Folding


• Located at the front of the machine, near the power cord and/or power switch.

Bikes

(Indoor Cycles)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the frame.
2. Located on the frame inside the forks.

Bikes

(Upright and Recumbent)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the frame (front, middle, or rear).
2. Located on the rear stabilizer bar.

Ellipticals

An extended model number & serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the bottom frame (middle or rear).

Incline Trainer Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine, subframe, or bottom cross frame.
2. Located on the subframe, user's right or left.

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine.
2. Located on the cross frame (machine must be in the folded position).
3. Located on the bottom of the deck frame.
4. Located on the rear subframe, user's right side.

Strength

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the frame (turn or tilt unit on its side to access).
2. Located on the front of the shroud.
3. Located on the front stabilizer bar.
4. Located on the frame in front of the rear stabilizer bar.
5. Located on the vertical frame, underneath the seat.
6. Located on the console mast.

Ellipticals

An extended model number & serial number may be found in one of these locations.


1. Located under the frame, front or rear (tilt unit on its side to access).
2. Located on the front stabilizer bar.
3. Located on the rear stabilizer bar.

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine.
2. Located on the cross frame (machine must be in the folded position to access).
3. Located on the foot frame, user's right side.
4. Located on the front inside deck frame, user's left (machine must be in the folded position to access).
5. Located on the rear inside deck frame, user's right (machine must be in the folded position to access).
6. Located on the upper console mast, user's left.

Strength

An extended model number & serial number may be found in one of these locations.


1. Located under the seat pad.
2. Located on the stabilizer foot.
3. Located on the rear bottom frame.

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

An extended model number & serial number may be found in one of these locations.


1. Located under the mainframe (front or rear).
2. Located on the front stabilizer bar.
3. Located on the rear stabilizer frame (recumbent bikes with an upright rear frame).

Ellipticals

An extended model number & serial number may be found in one of these locations.


1. Located on the rear stabilizer bar.
2. Located under the mainframe (front, middle, or rear).
3. Located under the ramp (machines with pedal wheels only).
4. Located on the foot pedal arm, user's left.

Strength

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located at the front of the machine.
2. Located on the cross frame (machine must be in the folded position).
3. Located inside the deck frame, the user's left or right side (machine must be in the folded position).
4. Located on the front outside deck frame, user's left side.
5. Located inside the foot frame, the user's right side.
6. Located on the rear inside deck frame, the user's right or left side (machine must be in the folded position).
7. Located on the upper console mast, user's left side.

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

Ellipticals

A serial number may be found in one of these locations.


1. Located underneath the console mas boot.
2. Located on the front stabilizer bar.

Strength

Treadmills

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

A serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the rear frame, behind the seat (recumbent bikes with an upright rear frame).

Steppers

Strength

Benches
A serial number may be found in one of these locations.


1. Located under the seat pad.
2. Located under the back pad.

Weight System
A serial number may be found in one of these locations.


1. Located under the seat pad.
2. Located on the lower frame, near the weight stack.
3. Located on the front of the leg press.

Treadmills

A serial number may be found in one of these locations.


1. Located on the front of the machine.
2. Located on the crossbar (machine must be in its folded position).
3. Located inside the deck frame, on the user's right or left side (machine must be in its folded position).
4. Located under the machine (machine must be in its folded position).

Bikes

(Indoor Cycles)

Ellipticals

Elliptical Trainers

Treadmills

Bikes

(Indoor Cycles)

A serial number may be found in one of these locations.


1. Located on the underside of the mainframe behind the belt cover, user's left side.
2. Located on the bottom of the front stabilizer bar (turn unit on its side to access).

Bikes

(Upright and Recumbent)

Bikes

(Upright and Recumbent)

Upright
A serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the seat post frame (remove the plastic shroud to access).
3. Located under the bottom frame (turn unit on its side to access).

Recumbent
A serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located under the bottom frame (turn units on its side to access).
3. Located under the rubber tray (remove screws and tray to access).
4. Located on the seat track.

Crosstrainers

A serial number may be found in one of these locations.


1. Located on the front of the machine (must remove shroud to access).
2. Located on the front stabilizer bar.
3. Located on the rear stabilizer bar.
4. Located at the rear end of the machine, near the power entry module.
5. Located on the rear tower (must remove shroud to access).

Consoles and Attachable TVs

LED/LCD, Achieve, Inspire and Engage Consoles
A serial number may be found in one of these locations.


1. Located on the backside of the console.
2. Located on the underside of the plastic.

Attachable TV
A serial number may be found in one of these locations.


1. Located on the backside of the TV.
2. Located on the underside of the plastic.

Steppers

A serial number may be found in one of these locations.


1. Located on the front of the machine (must remove shroud to access).
2. Located on the front stabilizer bar.

Strength

Summit Trainers

A serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the front lower frame (must remove shroud cover to access).
3. Located on the rear stabilizer bar (must remove shroud cover to access).

Treadmills

A serial number may be found in one of these locations.


1. Located on the front of the machine, near the power cord and/or power switch.
2. Located on the rear cross frame.
3. Located under the rear end cap (must remove end cap to access).

Bikes

An extended model number & serial number may be found in one of these locations.


1. Located on the rear stabilizer bar.
2. Located on the frame, near the rear stabilizer bar.
3. Located on the seat post.
4. Located on the front stabilizer bar.

Climbers

Skiers

An extended model number & serial number may be found in one of these locations.


1. Located on the front identification plate.
2. Located on mid-frame.

Steppers

An extended model number & serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the main upright frame bar.
3. Located on the rear stabilizer bar.

Strength

An extended model number & serial number may be found in one of these locations.


1. Located on the lower frame (left, right, or rear side).
2. Located on the upright frame (left or right side).
3. Located under the seat pad.

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine.
2. Located under the machine (machine must be in its folded position).
3. Located on the side of the deck frame, the user's left side.

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

Ellipticals

Treadmills

Ascent Trainers

A serial number may be found in one of these locations.


1. Located on the rear frame leg, the user's right side.
2. Located on the front stabilizer bar.

Bikes

(Upright and Recumbent)

A serial number may be found in one of these locations.

Body/Base of Machine Only


1. Located on the front stabilizer bar.
2. Located on the lower mast (must remove cover).

Bikes

(Hybrid)

A serial number may be found in one of these locations.

Body/Base of Machine Only

1. Located on the front stabilizer bar.
2. Located on the seat track (seat must be in lowest position).

Consoles

A serial number may be found in one of these locations.

Ascent Trainer Consoles


1. Located on bar code sticker, near the connection between the console and mast.
2. Found under Manager Mode or Engineering Mode in the display.

Bike Consoles (Upright, Recumbent, and Hybrid)


1. Located on bar code sticker, near the connection between the console and mast.
2. Found under Manager Mode or Engineering Mode in the display.

Elliptical Consoles


1. Located on bar code sticker, near the connection between the console and mast.
2. Found under Manager Mode or Engineering Mode in the display.

Stepper Consoles


1. Located on bar code sticker, near the connection between the console and mast.
2. Found under Manager Mode, Engineering Mode, or Service Mode in the display.

Treadmill Consoles


1. Found under Manager Mode or Engineering Mode in the display.
2. Located on the back of the console.

Ellipticals

A serial number may be found in one of these locations.

Body/Base of Machine Only


1. Located under the lower console mast boot (remove plastic cover).
2. Located on the user's left side wheel track.

KRANKcycle

Rowers

Stepmills

Steppers

A serial number may be found in one of these locations.

Body/Base of Machine Only


1. Located on the front of the machine, near the power switch.
2. Located below the bottom of the console mast (beneath a rubber boot).

Treadmills

A serial number may be found in one of these locations.

Body/Base of Machine Only


1. Located on the front of the machine, near the power switch.
2. Located on the front crossbar with the transport wheels.

Bikes

Ellipticals

Treadmills

A serial number may be found in one of these locations.

Folding


1. Located on the front of the machine, near the power cord and/or power switch.
2. Located on the cross frame, underneath the running deck (machine must be in folded position).

Bikes

(Upright and Recumbent)

A serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the rear stabilizer bar.

Stepmills

Steppers

Treadclimbers

Treadmills

A serial number may be found in one of these locations.


1. Located on the left-hand incline arm (incline treadmill to 15% for best view).
2. Located on the front of the machine, near the power cord and/or power switch.

Bikes

(Indoor Cycles)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the mainframe (front and rear).
2. Located on the frame, above the chain guard.

Bikes

(Upright and Recumbent)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the mainframe.
2. Located on the front stabilizer bar.
3. Located on the rear stabilizer bar.
4. Located on the lower frame, behind the seat mounting post.
5. Located on the lower or upper console mast.

Ellipticals

An extended model number & serial number may be found in one of these locations.

1. Located on the bottom of the frame (front, middle, or rear).
2. Located on the rear stabilizer bar.
3. Located on the front stabilizer bar.
4. Located on the bottom of the ramp assembly.
5. Located on the inside console support tube, the user's right side.

Steppers

Strength

An extended model number & serial number may be found in one of these locations.


1. Located under the seat.
2. Located behind the backrest.
3. Located on the lower frame (rear end).

Treadmills

(Incline Trainers)

An extended model number & serial number may be found in one of these locations.

1. Located on the front cross member.
2. Located on the frame rail, the user's right side.  Behind or in front of the console upright tube.

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front cross member.
2. Located on the front of the machine (machine must be in the down position).
3. Located on the rear inside frame rail, the user's right side.

Ellipticals

(Seated)

There are two separate serial numbers per machine: the base and console.

Base/Body of Machine Only
A serial number may be found in one of these locations.


1. Located in the seat track, the user's right side (seat must be in the lowest position).
2. Located on the metal frame just inside of the flywheel, the user's right side.

Console Only
A serial number may be found in one of these locations.


1. Located on the backside of the console (cover must be removed).
2. Located on the lower edge of the console (cover must be removed).

Ellipticals

(Standing)

There are two separate serial numbers per machine: the base and console.

Base/Body of Machine Only


• Located below the right chrome rail next to where the power supply plugs into the machine.

Console
A serial number may be found in one of these locations.


1. Located on the bottom edge of the upper console (just above the keypad).
2. Located on the underside of the console.

AMTs

Consoles

P80
A serial number may be found in one of these locations.


1. View serial number through the system menu - About.
2. Located on a bar code sticker on the back of the console, under the plastic cover.

P30


• View serial numbers through the information display settings.

P20


• Located on a bar code sticker on the back of the console.

P10


• View serial numbers through the information display settings.

Bikes

(Upright and Recumbent)

A serial number may be found in one of these locations.


1. Located on the bottom of the frame (turn unit on its side to access).
2. Located on the rear foot, near the floor (may turn unit on its side to access).

Ellipticals

A serial number may be found in one of these locations.


1. Located on the rear of the machine, near the power switch.
2. Located on the frame, underneath the hood.

Steppers

A serial number may be found in one of these locations.


1. Located on the bottom of the foot pedals.
2. Located on the front cover, near the power switch, user's left side.

Strength

Equipment with a seat


• Located underneath the seat support.

Equipment without a seat


• Located along the base frame behind the weight stack.

Weight Benches and Racks


• Located on the underside or rear of the main horizontal (or angled) frame support.

Stretch Trainers

A serial number may be found in one of these locations.


1. Located on the mainframe, behind the seat.
2. Located on the bottom of the frame (turn unit on its side to access).

Treadmills

General Models
A serial number may be found in one of these locations.


1. Located in front of the machine, near power cord entry.
2. Located under the rear frame, user's left side.

Older Models
A serial number may be found in one of these locations.


1. 3. Located on the front of the machine, on the hood, or the frame under the hood (must remove hood).
2. 4. Located on the center crossbar, under the deck.

Bikes

(Indoor Cycles)

Bikes

(Upright and Recumbent)

An extended model number & serial number may be found in one of these locations.


1. Located on the bottom of the frame (front or middle).
2. Located in front of the machine.
3. Located under the front stabilizer bar.
4. Located on the rear stabilizer bar.
5. Located on the base of the frame, rear end.

Climbers

An extended model number & serial number may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the mainframe between the pedals.

Cross Trainers

An extended model number & serial number may be found in one of these locations.


1. Located on the rear crossbar.
2. Located on the mainframe between the pedals.

Ellipticals

An extended model number & serial number may be found in one of these locations.


1. Located on the underside of the mainframe (front, middle, or rear).
2. Located on the front stabilizer bar.
3. Located on the rear stabilizer bar.

Skiers

An extended model number & serial number may be found in one of these locations.


1. Located on the front cross member.
2. Located inside mainframe, under pedal arms, user's right side.

Steppers

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine, near power entry module or base (machine must be in the down position).
2. Located on cross frame (machine must be in folded position).
3. Located on the bottom of the machine (machine must be in folded position).
4. Located inside the deck frame, user's left or right side (machine must be in folded position).
5. Located on the foot frame, user's right side.

Bikes

(Indoor Cycles)

An extended model number & serial# may be found in one of these locations.


1. Located on top of the bottom frame
2. Located inside the forks, on the user's left side.

Bikes

(Upright and Recumbent)

An extended model number & serial# may be found in one of these locations.


1. Located on the bottom of the frame; Front, middle or rear (turn unit on its side to access).
2. Located on the top of the frame, near the front stabilizer bar.
3. Located on the bottom of the rear stabilizer bar.
4. Located on the top of the frame, near the rear stabilizer bar.

Strength

An extended model number & serial# may be found in one of these locations.


1. Located under the seat.
2. Located on the rear of the frame.

Treadmills

An extended model number & serial# may be found in one of these locations.


1. Located on the front of the machine, near the power cord and/or power switch.  On the user's left or right.
2. Located on the lower frame or crossbar (machine must be in the folded position).
3. Located inside the deck frame (machine must be in the folded position).
4. Located on the rear inside deck frame.  On the user's right side.
5. Located under the treadmill (machine must be in the folded position).

Bikes

(Airdynes)

Serial# may be found in one of these locations.


1. Located on the front stabilizer bar.
2. Located on the mainframe, below the bottom bracket.
3. Located on the chain bracket, user's left side.

Bikes

(Indoor Cycles)

Serial# may be found in one of these locations.


1. Located under the mainframe (must tilt the machine to access).
2. Located on the upright main frame, behind the chain guard.

Bikes

(Upright and Recumbent)

Ellipticals

Rowers

Steppers

Strength

Treadmills

Alt Trainer

X-Trainers
A serial# may be found in one of these locations.


1. Located on the rear of the base frame.
2. Located under the rear transport handle, behind the seat (units with transport handle).

Pinnacle Alt Trainers
A serial# may be found in one of these locations.


1. Located on the front cover.
2. Located mid-frame.

Bikes

(Indoor Cycles)

Bikes

(Recumbent & Upright)

A serial# may be found in one of these locations.

Recumbent Bike


1. Located behind the seat.
2. Located on the lower front cover.
3. Located under the seat rail frame.
4. Located on the vertical frame, under the transport handle.

Upright Bike
A serial# may be found in one of these locations.

      5. Located on the rear vertical post frame, facing the cover.
      6. Located on the rear cover by the power switch (units with a rear support cover).



Ellipticals

A serial# may be found in one of these locations.


1. Located on the lower front cover center.
2. Located on the rear cover, near the power switch/power cord/or above the transport wheel.
3. Located under the rear cover, right side of the frame (look on the frame inside the cover opening for the glide rails).

Rowers

A serial# may be found in one of these locations.


1. Located on the front cover.
2. Located on the frame, near the power switch.

Steppers

A serial# may be found in one of these locations.


1. Located on the front main frame (remove front cover).
2. Located on the front stabilizer frame.

Strength

Single Station & Dual Function


• Located on the frame by the weight stack.

Smith, Functional Trainer


• Located on the frame center.

Free Weight Benches

• Located on the frame, under bench-center.

Treadmills

Steppers

Stepmills

Treadmills

Bikes

(Indoor Cycle)

Please note that the serial number and SKU number, if available, can be found in one of these locations.


1. Located on the bottom of the front stabilizer bar.
2. Located on the inside of the frame, by the flywheel.
3. Located on the bottom of the cross member, rear end.

Bikes

(Upright & Recumbent)

Please note that the serial number and SKU number, if available, can be found in one of these locations.


1. Located on the front stabilizer bar.

Bikes

(Turbo Trainer)

Please note that the serial number and SKU number, if available, can be found in one of these locations.


1. Located on the front stabilizer bar.

Consoles and PVS

A serial number may be found in one of these locations.

Consoles


1. Located on the back of the console.
2. Found under Manager Mode/Maintenance Mode in the display.

PVS


1. Located on the back of the PVS (personal viewing screen).

CrossTrainers/Total Body Trainers

Stairmills

A serial number may be found in one of these locations.


1. Located inside the rear cross frame.
2. Located on the foot frame.

Steppers

Strength

A serial number may be found in one of these locations.


1. Located on the base of the weight stack.
2. Located on the rear of the unit, at the base of the mainframe.

Treadclimbers

Treadmills

A serial number may be found in one of these locations.


1. Located on the front of the machine, near the power switch.
2. Located on the rear of the machine, outside frame (remove plastic cover).

Bikes

(Upright & Recumbent)

Steppers

A serial number may be found in one of these locations.


1. Located on the frame, in between the pedals.
2. Located on the front of the machine, near the power entry area.

Bikes

Ellipticals

A serial number may be found in one of these locations.


1. Located on the rear stabilizer bar.
2. Located on the front stabilizer bar.
3. Located on the console mast bracket.

Treadmills

A serial number may be found in one of these locations.

Folding


1. Located on the front of the machine, to the left of the power cord and/or power switch.
2. Located on the cross frame, underneath the running deck (machine must be in folded position).
3. Located on the front stabilizer leg.

Bikes

(Indoor Cycles)

Bikes

(Reebok/Tomahawk Indoor Cycles)

Treadmills

Treadmills

Bikes

(Upright & Recumbent)

A serial number may be found in one of these locations.


1. Located on the frame plate, behind the transport wheels.
2. Located on the bottom of the base frame (tilt machine to access).
3. Located on the rear main frame arch, under the seat.
4. Located on the mainframe column, at the bottom under the console.

Ellipticals

Treadmills

Bikes

(Upright and Recumbent)

Some models have two separate serial numbers per machine: the base and the console.

Body/Base of Machine Only


• Located on the front axle tube.

Bikes

(Indoor Cycles)

Consoles

Some models may have a separate serial number for the console.

Bikes


1. Located on the back of the console.
2. Located on the bottom of the console.

Ellipticals


1. Located on the back of the console.
2. Located on the bottom of the console.

Treadmills


• Located on the back of the console.

Ellipticals

Some models have two separate serial numbers per machine: the base and the console.

Body/Base of Machine Only


1. Located on the front axle tube.
2. Located on the fame of the machine.
3. Located on the console mast bracket (remove cover).

Strength

Functional Trainer


• Located on the floor support, the user's right side.

Single Station & Multi Station


• Located on the center floor support.

Benches


• Located on the backrest support tube.

Treadmills

Some models have two separate serial numbers per machine:  the base and the console.

Body/Base of Machine Only


• Located on the front of the machine, underside of the mainframe.

Skiers

Steppers

An extended model number & serial number may be found in one of these locations.


1. Located on the mainframe, the user's right side.
2. Located on the front stabilizer, user's left side.

Strength

An extended model number & serial number may be found in one of these locations.


1. Located under the seat.
2. Located behind the back pad.
3. Located on the lower frame.
4. Located on the lower stabilizer foot.

Treadmills

An extended model number & serial number may be found in one of these locations.


1. Located on the front of the machine.
2. Located on the cross frame (machine must be in folded position).
3. Located on the side of the deck frame, the user's left side.

Bikes

(Upright, Recumbent and Indoor Cycles)

An extended model number & serial number may be found in one of these locations.


• Located under the mainframe (in most cases, tilt the machine to access).
• Located on the front stabilizer bar.
• Located on the rear frame behind the seat.
• Located on the frame in front of the rear stabilizer.
• Located on the seat post frame.
• Located on the rear frame (may have to tip machine to the side to access).

Climbers

Ellipticals

An extended model number & serial number may be found in one of these locations.


• Located on the bottom of the frame (front or rear, tilt unit to access).
• Located on the rear stabilizer bar.
• Located on the front of the machine.

Rowers

Skiers

Steppers

An extended model number & serial number may be found in one of these locations.


• Located on the front stabilizer bar.
• Located on the frame, in front of the steps.
• Located on the frame, in between the steps.
• Located on the rear stabilizer bar.

Strength

An extended model number & serial number may be found in one of these locations.


• Located under the seat pad.
• Located on the stabilizer frame.
• Located on the mid-frame stabilizer.
• Located on the base of the frame.

Treadmills

An extended model number & serial number may be found in one of these locations.


• Located on the front of the machine.
• Located on the side of the deck frame, the user's left side.
• Located inside the deck frame, user's left side.
• Located on the bottom of the machine (machine must be in folded position).
• Located on the crossbar (machine must be in folded position).
• Located on the lower console mast.
